Problem
Manual inspection is not sustainable in high-speed production lines. Lighting variations and human limitations lead to missed defects.
SOLUTION DETAIL
Pattern Inspection
Detect surface patterns, prints and visual repetitions using machine vision and identify defective products instantly.
Visiomex pattern inspection systems compare real product images with reference patterns to deliver fast, consistent and measurable quality control on the line.

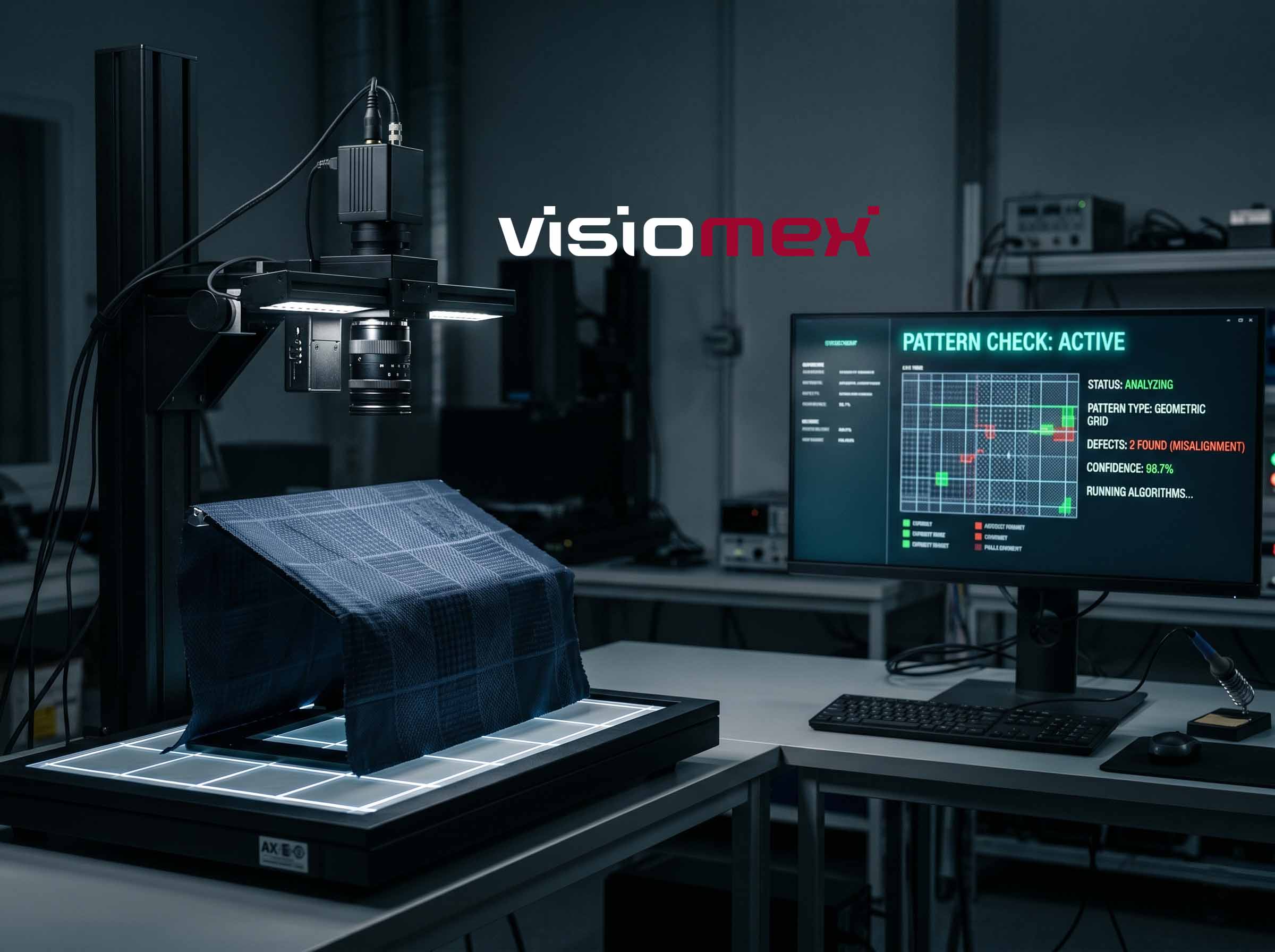

System Structure
Camera, lighting, decision logic and automation integration form the core layers of the solution architecture.
Solution
Visiomex pattern inspection systems use optimized imaging and advanced algorithms to compare real products with reference patterns and detect inconsistencies automatically.
How It Works
- Image is captured
- Pre-processing is applied
- Pattern analysis is performed

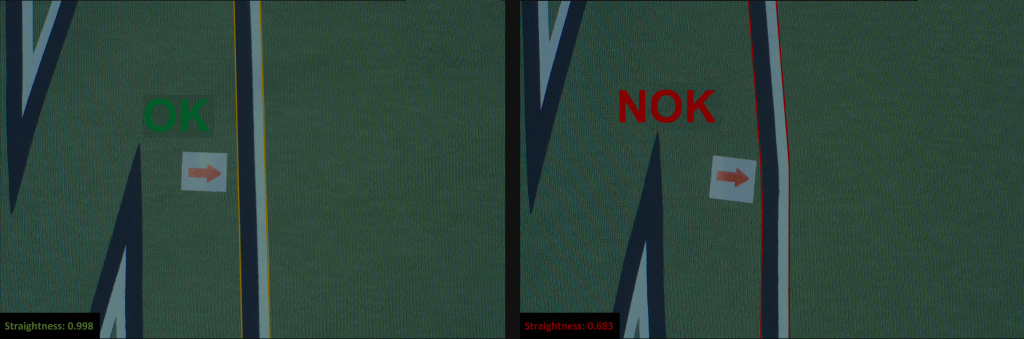

- OK / RED decision is generated
- System takes action
Outcome
Pattern inspection improves quality performance with faster inspection, consistent decisions, reduced defect rates and stronger traceability.
Benefits
- Faster inspection
- Consistent decisions
- Reduced defect rates
- Improved traceability
Related Technologies
Industrial camerasLighting systemsImage processingPattern recognitionAI (optional)Robotic integration
Use Cases
- Textile pattern inspection
- Packaging print inspection
- Label verification
- Plastic surface inspection
