Problem
In applications that require precision measurement, manual gauges and sampling methods are both slow and insufficient to represent the full production flow. When process drift is detected late, scrap rates increase.
SOLUTION DETAIL
Measurement
Measure critical dimensions at micron-level precision and identify out-of-tolerance products instantly.
Visiomex measurement solutions combine visual inspection with numerical measurement data to make quality decisions objective.
System Structure
Camera, lighting, decision logic and automation integration form the core layers of the solution architecture.
Solution
Visiomex analyzes critical dimensions inline with measurement optics and software matched to product geometry. Tolerance comparison is performed in real time and measurement data is stored in a traceable way.
Outcome
Measurement solutions strengthen tolerance control, reduce scrap and detect process drift earlier.
Benefits
- Stronger tolerance control
- Lower scrap rates
- Numerical quality decisions
- Earlier process warning
Related Technologies
Precision optical measurement2D / 3D analysisTolerance comparison softwareCalibration infrastructureData reporting
Use Cases

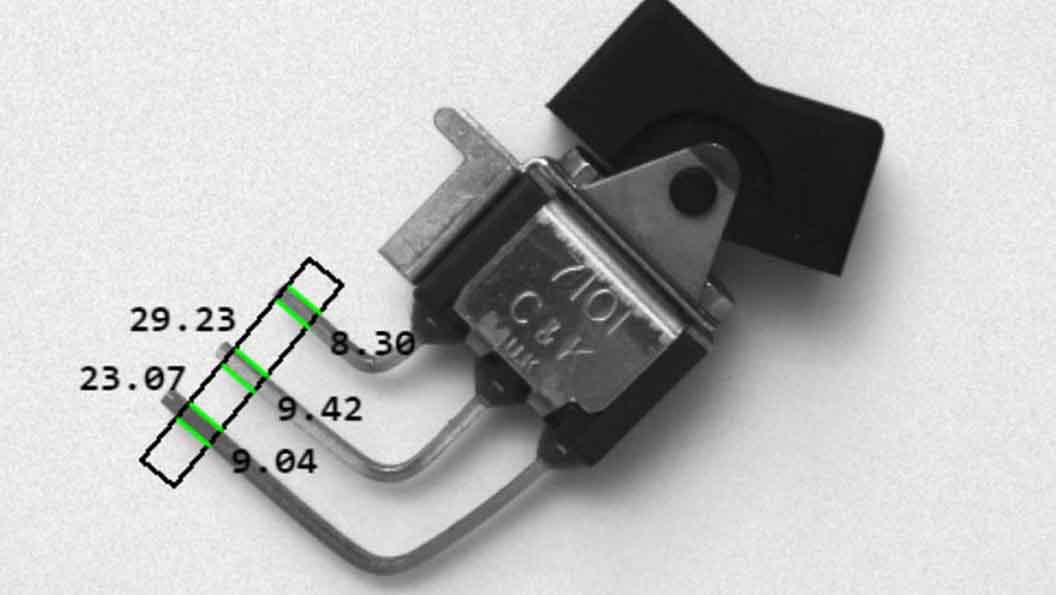

- Critical diameter / height measurement
- Assembly surface measurement
- Out-of-tolerance rejection
- Inline measurement stations
